HSS Shapes - Round - HSS4.5x.237

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

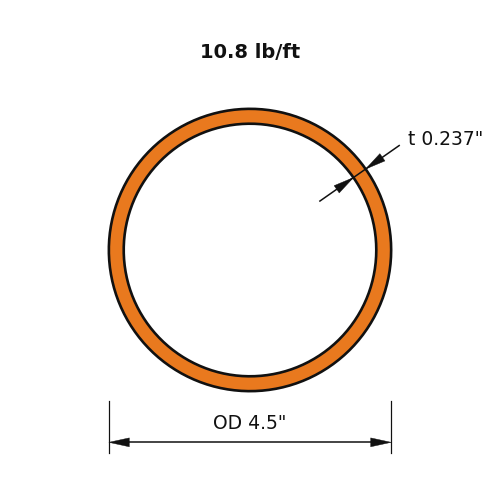

Dimensions

PropertyValue
Nominal Weight10.8
Outside Diameter4.5
Nominal Thickness0.237

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix6.79
Zx4.03
Sx3.02
rx1.52
Iy6.79
Zy4.03
Sy3.02
ry1.52
J13.6
C6.04

Full sortable table: Section properties table for this family
